GARMIN GPS 24xd NMEA 2000 FOR NMEA 2000® NETWORK

The 24xd GPS antenna position receiver gives you a precise location thanks to GNSS sensors

and route accuracy even at low speeds. Navigate to more locations with extended GNSS support.

Get high-sensitivity tracking with a fast GPS update rate. Pinpoint your route precisely,

regardless of speed. It is waterproof (IPX7) to withstand the elements.

Install easily with multiple mounting options. The antenna is compatible with NMEA 2000® devices.

MULTIBAND GNSS Multiband GNSS provides accurate position within 1 meter with compatible marine multifunction displays,

instrument displays and autopilots. MAGNETIC COURSE The magnetic heading sensor provides accuracy up to 3 degrees,

chart stabilization, radar overlay and MARPA even at low speeds.

HIGH SENSITIVITY GPS Fast 10Hz position update rates provide location data,

Highly sensitive speed and time. EXPANDED GNSS SUPPORT GPS 24xd provides access to four major navigation systems

global satellite (GPS, Galileo 2, GLONASS and BeiDou 2) for more accurate tracking

in difficult conditions compared to using GPS alone COMPATIBLE WITH VARIOUS SBAS Support for multiple SBAS

corrects signal measurement errors and provides accuracy information,

signal integrity, continuity and availability. MOUNTING OPTIONS Installation is easy with underdeck mounting options,

on pole and on surface. 1 <1 meter CEP, 2<3 meters 95% Features: Dimensions (depth x height):

91.6mm x 49.5mm Weight: 201g Cable length: 6m Temperature range: 30 to 80°C Housing material:

Fully sealed plastic alloy, high impact resistance, waterproof to IPX7 standards Compass safety distance:

150 mm Power supply: 9 16 V DC, irregular Power socket: 150 mA at 12 V DC NMEA 2000 load equivalency number (LEN):

3 (150 mA) Position accuracy, typical marine use: <50 cm, CEP 50%;

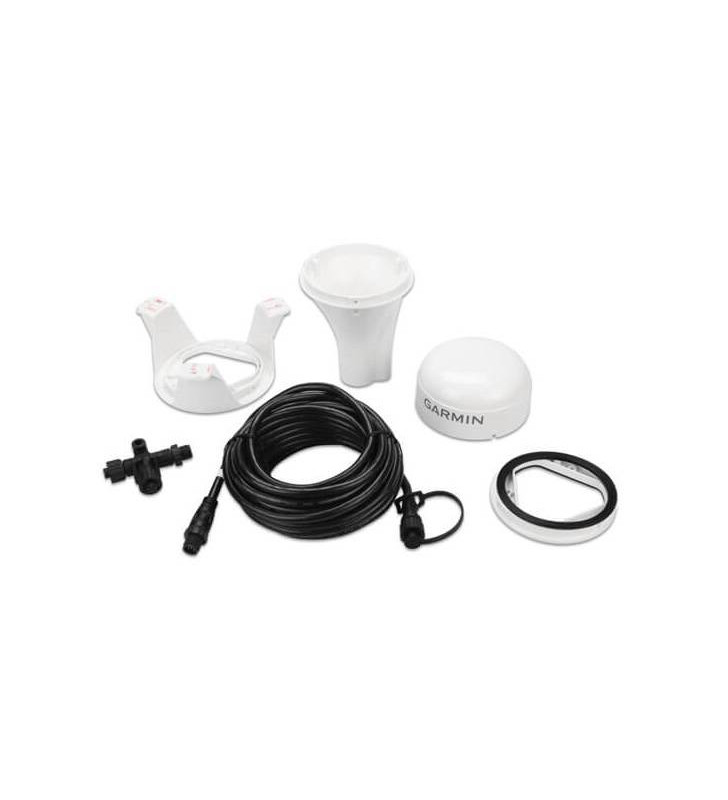

<1 meter, 88% In the box: GPS 24xd NMEA 2000 ® Pole mount Surface mount Underdeck mount NMEA backbone

2000/Drop Cable (6 meters) NMEA 2000 Connector T Documentation.
