600w indoor plastic transducer.

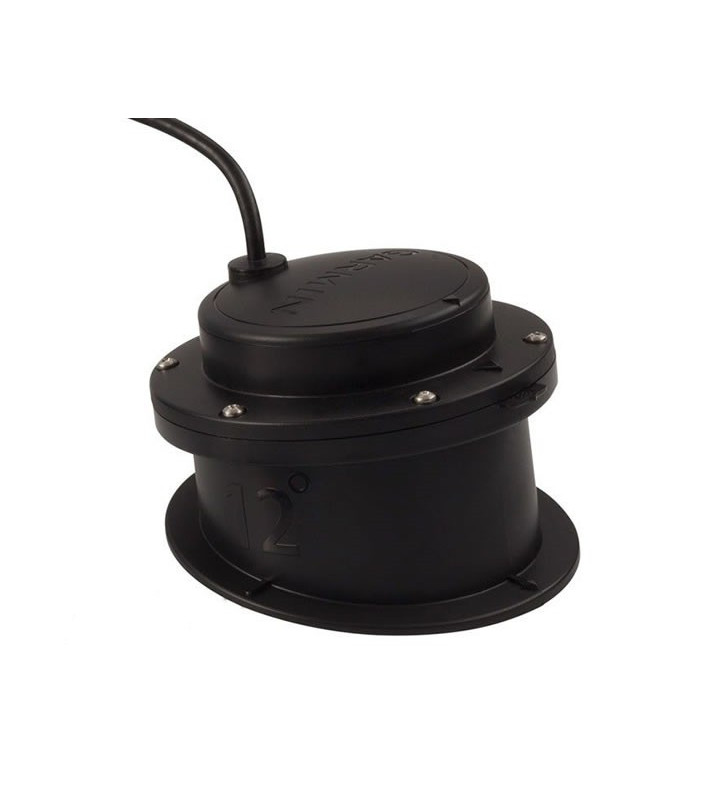

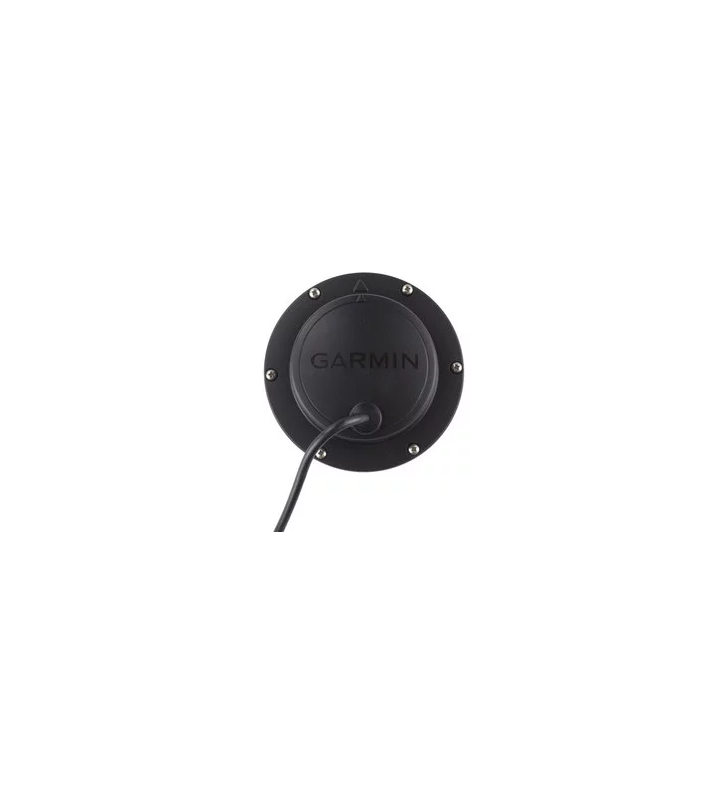

GARMIN GT15M-IH INDOOR TRANSDUCER
The GT15M-IH transducer is ideal for vessels where the transducer is to be installed inside the hull
in fiberglass and not at the stern, where cavitation could cause problems.
It can be used with a hull angle between 0 and 25 degrees and is ideal for boats
that travel at high speeds so you want to maintain accurate depth readings.
8-pin transducer with 4 plastic tanks includes traditional mid-band CHIRP sonar (85-165 kHz)
and a power rating of 600W. It can be used in conjunction with a GT30-TM transducer
and an adapter cable to maintain depth at high speeds and scanning capabilities at trolling speeds.
For installation, please follow the included instructions carefully to avoid damage to your boat.

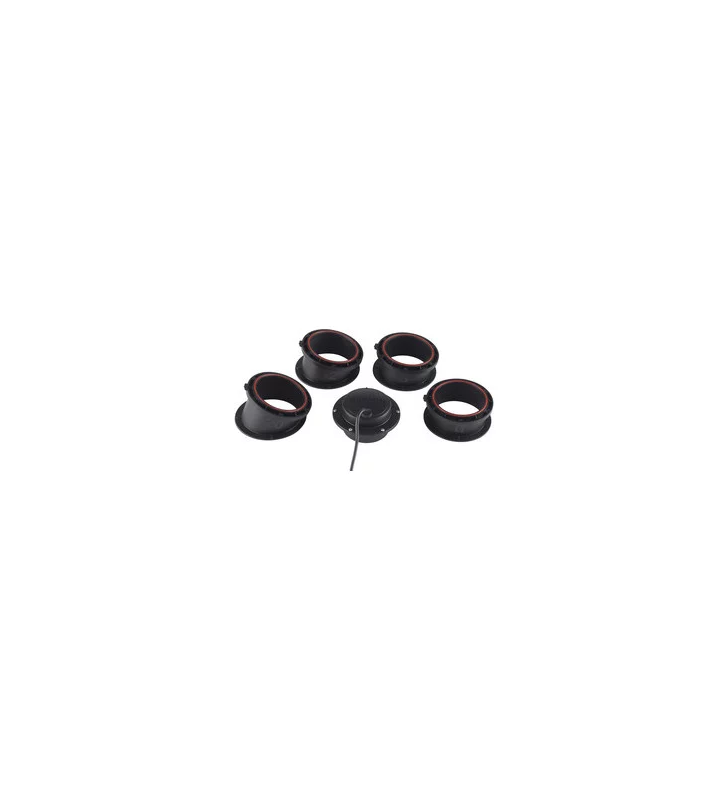

Included are various adapters for adjusting the degrees.
| FREQUENCY | CHIRP Mid-band (85-165 kHz) |
|---|---|
| FREQUENCY | 600 W |
| BEAMWIDTH | 24°-13° |
| MAXIMUM DEPTH | 1,900 ft. freshwater |
| DEPTH/SPEED/TEMPERATURE | Depth |
| PIN NUMBER | 8-pin |
| CABLE LENGTH | 20 ft. |
| SUPPORTED TILT/TRAM ANGLES | 0°- 25° deadrise |
