TRASDUTTORE GT23TM-TM
TRASDUTTORE GT23TM-TM
TRASDUTTORE GT23TM-TM

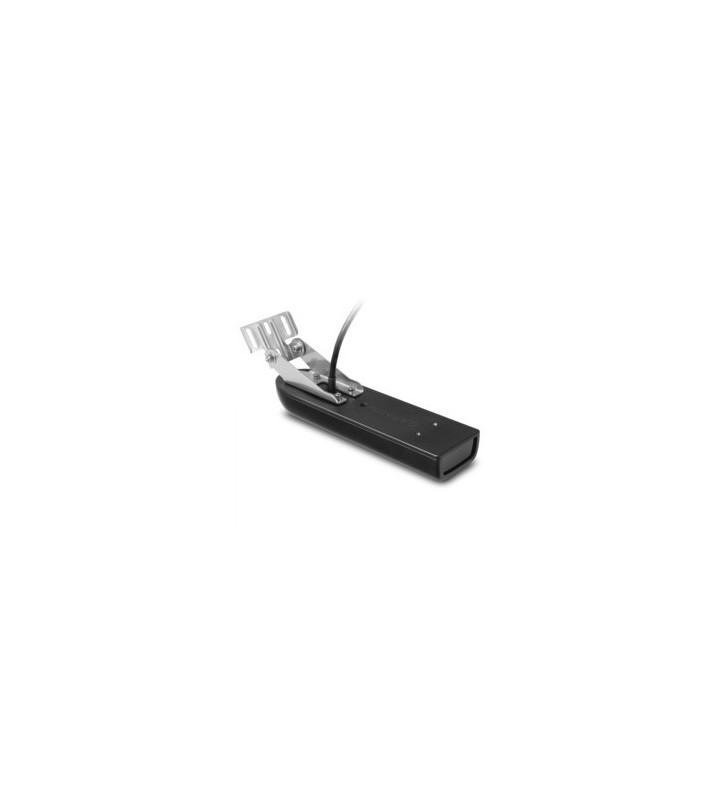

Il trasduttore GT23M-TM è perfetto per la pesca lungo costa e in acque profonde, per chi desidera un eccellente ecoscandaglio tradizionale CHIRP e un ecoscandaglio a scansione CHIRP ClearVü. Questo trasduttore con supporto da poppa visualizza in modo chiaro e nitido gli archi di pesce con una straordinaria separazione dei bersagli e una definizione netta della struttura sotto all'imbarcazione.
Il trasduttore a 8 pin include un ecoscandaglio tradizionale CHIRP a banda media (80-160 kHz) e una classificazione di potenza di 600 W. L'elemento CHIRP ClearVü (260/455 kHz) ha una classificazione di potenza di 500 W.
Per l'installazione, segui attentamente le istruzioni incluse per evitare danni all'imbarcazione.
Aspetto e prestazioni
Frequency | CHIRP Mid-band (80-160 kHz); ClearVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz) |
---|---|
Power | CHIRP Traditional 600 W; ClearVü 500 W |
Beamwidth | Traditional (24-13); ClearVü (2.0x51 @ 260 kHz) & (1.4x29 @ 455 kHz) |
Maximum depth | Traditional: 1,800 ft.; ClearVü: 1,000 ft. |
Depth/Speed/Temperature | Depth and Temperature |
Number of pins | 8-pin |
Cable length | 30 ft. |
Supported deadrise/Transom angles | 0°-70° degree transom |
Weight: 1.87 lb (0.85 kg)
Lunghezza del cavo: 30 piedi (9 m)
Numero di pin sul connettore: 8
Dimensioni:
Trasduttore:
Frequenza:
Tradizionale: CHIRP 80-160 kHz
ClearVü: CHIRP 245-275 kHz e CHIRP 445-465 kHz
Potenza di trasmissione:
Tradizionale: 600 W
ClearVü: 500 W
Profondità massima:
Traditional: 1.800 piedi (548,6 m)
ClearVü: 1.000 piedi (304,8 m)
Ampiezza del fascio (°) LF/HF (-3dB):
Tradizionale: 24/13
ClearVü:
2,0x51@260
1,4x29@455
Lettura della temperatura dell'acqua: sì
Compatibile con:STRIKER, echoMAP CHIRP, GPSMAP xs/xsv, GSD 25
